Lincoln Laboratory’s Agile MicroSat will be the first small satellite to demonstrate long-duration, low altitude flight with autonomous maneuvering.

In May, 2022, a SpaceX Falcon 9 rocket launched the Transporter-5 mission into orbit. The mission contained a collection of micro and nanosatellites from industry and government, including one from Lincoln Laboratory called the Agile MicroSat (AMS).

AMS’s primary mission is to test automated maneuvering capabilities in the tumultuous very low-Earth orbit (VLEO) environment, starting at 525 kilometers above the surface and lowering down. VLEO is a challenging location for satellites because the higher air density, coupled with variable space weather, causes increased and unpredictable drag that requires frequent maneuvers to maintain position. Using a commercial-off-the-shelf electric-ion propulsion system and custom algorithms, AMS is testing how well it can execute automated navigation and control over an initial mission period of six months.

"AMS integrates electric propulsion and autonomous navigation and guidance control algorithms that push a lot of the operation of the thruster onto the spacecraft. Somewhat like a self-driving car," says Andrew Stimac who is the principal investigator for the AMS program and the leader of the Laboratory’s Integrated Systems and Concepts Group.

Stimac sees AMS as a kind of pathfinder mission for the field of small satellite autonomy. Autonomy is essential to support the growing number of small satellite launches for industry and science because it can reduce the cost and manpower needed to maintain them, enable missions that call for quick and impromptu responses, and help to avoid collisions in an already-crowded sky.

AMS is the first-ever test of a microsatellite with this type of automated maneuvering capability.

Three missions in one

AMS uses an electric propulsion thruster that was selected to meet the size and power constraints of a microsatellite while providing enough thrust and endurance to enable multi-year missions that operate in VLEO. The flight software, called the Bus Hosted Onboard Software Suite, was designed to autonomously operate the thruster to change the spacecraft’s orbit. Operators on the ground can give AMS a high-level command, such as to descend to and maintain a 300-kilometer orbit, and the software will schedule thruster burns to achieve that command autonomously using measurements from the onboard GPS receiver as feedback. This experimental software is separate from the bus flight software, which allows AMS to safely test its novel algorithms without endangering the spacecraft.

"One of the enablers for AMS is the way in which we've created this software sandbox onboard the spacecraft," says Robert Legge, who is another member of the AMS team. "We have our own hosted software that's running on the primary flight computer, but it's separate from the critical health and safety avionics software. Basically, you can view this as being a little development environment on the spacecraft where we can test out different algorithms."

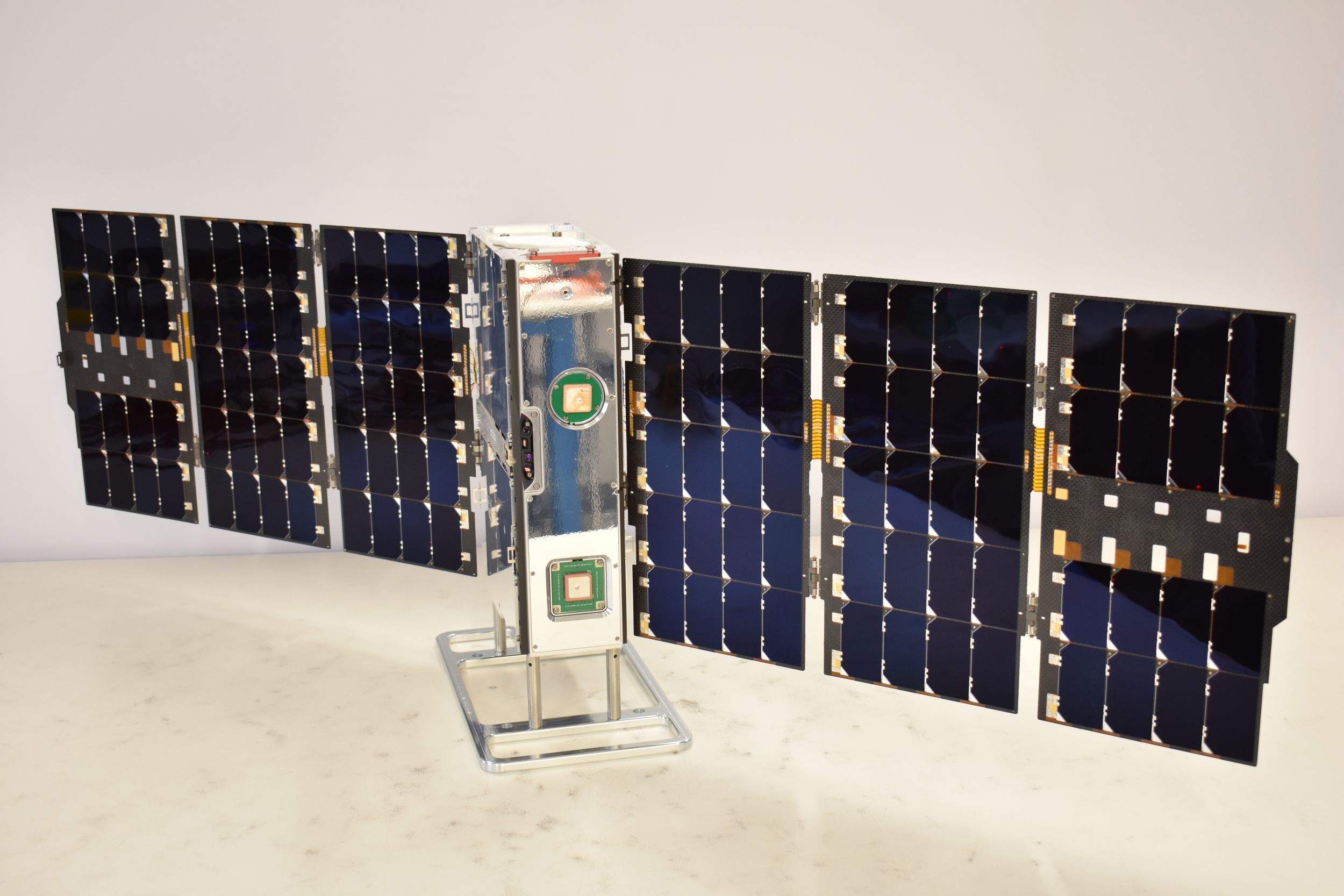

Shown is the full AMS satellite with solar panels deployed.
Shown above is the full AMS satellite with solar panels deployed.

AMS has two secondary missions called Camera and Beacon. Camera’s mission is to take photos and short video clips of the Earth’s surface while AMS is in different low-Earth orbit positions.

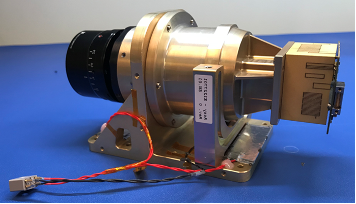

Camera is a 3D Plus RGB color camera with a Schneider lens. It was chosen for the mission because of it’s compact size and onboard image processing capability.
Camera is a 3D Plus RGB color camera with a Schneider lens. It was chosen for the mission because of its compact size and onboard image processing capability.

"One of the things we're hoping to demonstrate is the ability to respond to current events," says Rebecca Keenan, who helped to prepare the Camera payload. "We could hear about something that happened, like a fire or flood, and then respond pretty quickly to maneuver the satellite to image it."

Keenan and the rest of the AMS team are collaborating with the Laboratory’s DisasterSat program, which aims to improve satellite image processing pipelines to help relief agencies respond to disasters more quickly. Small satellites that could schedule operations on-demand, rather than planning them months in advance before launch, could be a great asset to disaster response efforts.

On September 30, AMS took photos of the aftermath of hurricane Ian. This photo is centered on the Fort Myers and Naples area, which was the hardest hit region.
On September 30, AMS took photos of the aftermath of hurricane Ian. This photo is centered on the Fort Myers and Naples area, which was the hardest hit region.

The other payload, Beacon, is testing new adaptive optics capabilities for tracking fast-moving targets by sending laser light from the moving satellite to a ground station at the Laboratory’s Haystack Observatory in Westford, Massachusetts. Enabling precise laser pointing from an agile satellite could aid many different types of space missions, such as communications and tracking space debris. It could also be used for emerging programs such as Breakthrough Starshot, which is developing a satellite that can accelerate to high speeds using a laser-propelled lightsail.

"As far as we know, this is the first on-orbit artificial guide star that has launched for a dedicated adaptive optics purpose," says Lulu Liu, who worked on the Beacon payload. "Theoretically, the laser it carries can be maneuvered into position on other spacecraft to support a large number of science missions in different regions of the sky."

The team developed Beacon with a strict budget and timeline and hope that its success will shorten the design and test loop of next-generation laser transmitter systems. "The idea is that we could have a number of these flying in the sky at once, and a ground system can point to one of them and get near-real-time feedback on its performance," says Liu.

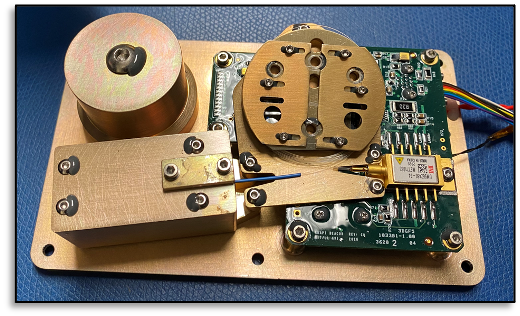

Beacon is compact and contains no moving parts, making it an easy piece to integrate into different types of satellite architectures.
Beacon is compact and contains no moving parts, making it an easy piece to integrate into different types of satellite architectures.

AMS weighs under 12 kilograms with 6U dimensions (23 x 11 x 36 cm). The bus was designed by Blue Canyon Technologies and the thruster was designed by Enpulsion GmbH.

Legge says that the AMS program was approached as an opportunity for Lincoln Laboratory to showcase its ability to conduct work in the space domain quickly and flexibly. Some major roadblocks to rapid development of new space technology have been long timelines, high costs, and the extremely low risk tolerance associated with traditional space programs. "We wanted to show that we can really do rapid prototyping and testing of space hardware and software on orbit at an affordable cost," Legge says.

"AMS shows the value and fast time to orbit afforded by teaming with rapid space commercial partners for spacecraft core bus technologies and launch and ground segment operations, while allowing the Laboratory to focus on innovative mission concepts, advanced components and payloads, and algorithms and processing software," says Dan Cousins, who is the program manager for AMS. "The AMS team appreciates the support from the Laboratory’s Technology Office for allowing us to showcase an effective operating model for rapid space programs."

AMS took its first image on June 1, completed its thruster commissioning in July, and has begun to descend toward its target VLEO position.

On June 7, AMS took a photo of Baffin Bay near Greenland as part of a project to track ice melting in this area over the summer.
On June 7, AMS took a photo of Baffin Bay near Greenland as part of a project to track ice melting in this area over the summer.
AMS took a photo of Boston on July 10. Hanscom Air Force Base can be seen northwest of the city center and the Haystack Observatory is further to the west.
AMS took a photo of Boston on July 10. Hanscom Air Force Base can be seen northwest of the city center and the Haystack Observatory is further to the west.
